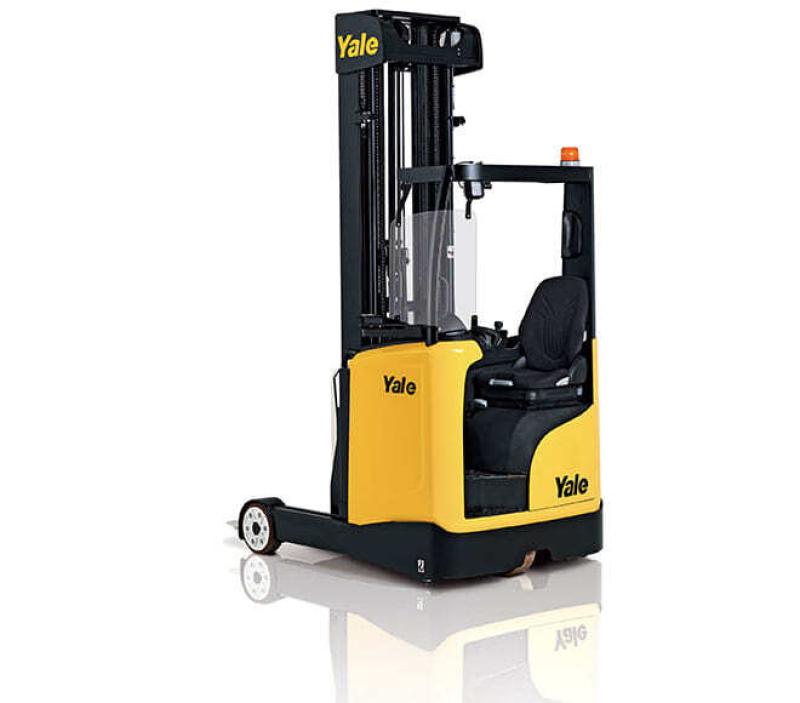

Yale MR14-25

Reach Trucks


Need Assistance?

Let us help you find what you need.

The Flexibility to Reach Higher, Faster


Are you looking for a solution to help your operations reach higher, faster? With seven models ranging in capacity from 3,000 – 5,500 lbs., five chassis options and numerous standard and optional features, the Yale® MR14-25 moving mast reach truck offers a flexible solution designed to help you do just that.

The Flexibility to Reach Higher, Faster


Are you looking for a solution to help your operations reach higher, faster? With seven models ranging in capacity from 3,000 – 5,500 lbs., five chassis options and numerous standard and optional features, the Yale® MR14-25 moving mast reach truck offers a flexible solution designed to help you do just that.
Features
Specifications
Copy Set

Features

Lifetime frame warranty

Optional cold storage cabin provides a more comfortable work environment in -22°F (-30°C) conditions

‘Get Home’ function can be activated after all functions come to rest, allowing operators to drive the truck to an appropriate place for repair

Choice of 180°/360° steering for seamless direction changes in narrow aisles

Premium touch screen display allows continuous awareness of operational status, by providing PIN access, height preselect, fleet management information, weight indication, lift interrupt override and creep speed selection, when equipped with applicable options

Maximum travel speeds of 8.7 mph, mast speeds up to 143 fpm and lifting heights up to 502”

36 month/6,000 hour powertrain limited warranty

Standard Accutouch mini-lever or optional joystick for simplified control

Dual CANbus technology identifies operator errors and malfunctions, helping determine problems for a fast fix

Optional hydraulically operated extendable forks provide up to 30% more storage density

Ergonomically designed side seated compartment, full suspension adjustable seat and adjustable steering column

12 month/unlimited hours full truck limited warranty

Robust mast design provides higher residual capacities and stable load handling, enabling faster put away and retrieval times

Specifications

Capacity:
3,000 - 5,500 lbs
Max Height:
501
Max Weight:
5500 lbs
Series Title:
MR14-25
Type:
MR Moving Mast Reach Truck
Weight:
lbs

ModelTable

Model Load Capacity (lbs.) Battery Maximum Travel Speed (mph) Maximum Lift Speed (ft/min) Lower Lift Speed (ft/min)
MR14 3000 48 8.7 143 108.3
MR16 3500 48 8.7 143 108.3
MR16N 3500 48 8.7 143 108.3
MR16HD 3500 48 8.7 143 108.3
MR20 4500 48 8.7 126 108.3
MR20HD 4500 48 8.7 133 108.3
MR25 5500 48 8.7 126 108.3
