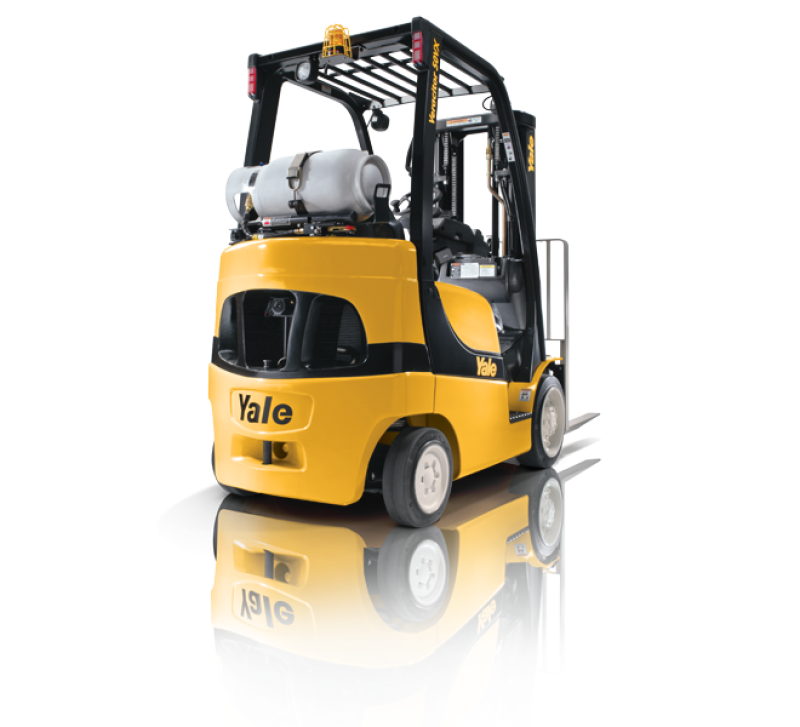

Yale GC040-070VX

IC Cushion Tire


Need Assistance?

Let us help you find what you need.

Rugged and Versatile with Customizable Options for Any Application


The GC040-070VX Veracitor® series offers a reliable and comprehensive parts program. Not only is the truck designed to require less maintenance, the Yale® dealer program provides off-the-shelf availability of maintenance and repair parts routinely serviced in the first two years of truck operation.

The GC040-070VX Veracitor® boasts innovative features and industry-leading power, while delivering maximum performance for medium to heavy duty applications. Two engine selections consisting of the Kubota 2.5L and PSI 2.4L engines offer multiple performance levels with low operating costs.

Rugged and Versatile with Customizable Options for Any Application


The GC040-070VX Veracitor® series offers a reliable and comprehensive parts program. Not only is the truck designed to require less maintenance, the Yale® dealer program provides off-the-shelf availability of maintenance and repair parts routinely serviced in the first two years of truck operation.

The GC040-070VX Veracitor® boasts innovative features and industry-leading power, while delivering maximum performance for medium to heavy duty applications. Two engine selections consisting of the Kubota 2.5L and PSI 2.4L engines offer multiple performance levels with low operating costs.

Features
Specifications
Copy Set

Features

The Continuous Stability System (CSS™) enhances the truck's lateral stability with a simple, maintenance-free design that does not compromise uneven surface travel.

From the rear-opening, one-piece hood and on board diagnostics, to the reliable, most comprehensive parts availability in the industry, this truck was designed with service details in mind.

For applications requiring the use of attachments; Yale® attachment ready models are available with a factory modified front end, which allow for seamless truck and Bolzoni Auramo attachment interface.

Excellent operator visibility is afforded through the Yale® Global Hi-Vis™ mast.

Operator comfort is enhanced by the increased foot space in the well designed operator's compartment. The isolated powertrain reduces noise and vibration, minimizing operator fatigue and increasing operator productivity throughout a shift.

The Yale® Veracitor® VX truck delivers maximum performance for medium to heavy duty applications with state-of-the art features and industry leading power.

Specifications

Capacity:
4,000 – 7,000 lbs
Max Height:
217
Max Weight:
7000 lbs
Series Title:
GC040-070VX
Type:
Internal Combustion Cushion Tire Lift Truck
Weight:
lbs

ModelTable

Model Model Designation Load Capacity (lbs.) Engine Transmission Maximum Travel Speed (mph) Maximum Lift Speed (ft/min)
GC040VX Internal Combustion Trucks 4000 PSI 2.4L, Kubota 2.5L Electronic Powershift 1 Speed, Techtronix 100 Electronic 1 Speed 11.3 126
GC050VX Internal Combustion Trucks 5000 PSI 2.4L, Kubota 2.5L Electronic Powershift 1 Speed, Techtronix 100 Electronic 1 Speed 11.3 126
GC055SVX Internal Combustion Trucks 5500 PSI 2.4L, Kubota 2.5L Electronic Powershift 1 Speed, Techtronix 100 Electronic 1 Speed 11.3 126
GC060VX Internal Combustion Trucks 6000 PSI 2.4L, Kubota 2.5L Electronic Powershift 1 Speed, Techtronix 100 Electronic 1 Speed 11.2 110
GC070VX Internal Combustion Trucks 7000 PSI 2.4L, Kubota 2.5L Electronic Powershift 1 Speed, Techtronix 100 Electronic 1 Speed 11.2 110
